CM Series

หมวดหมู่สินค้า: EBARA PUMP

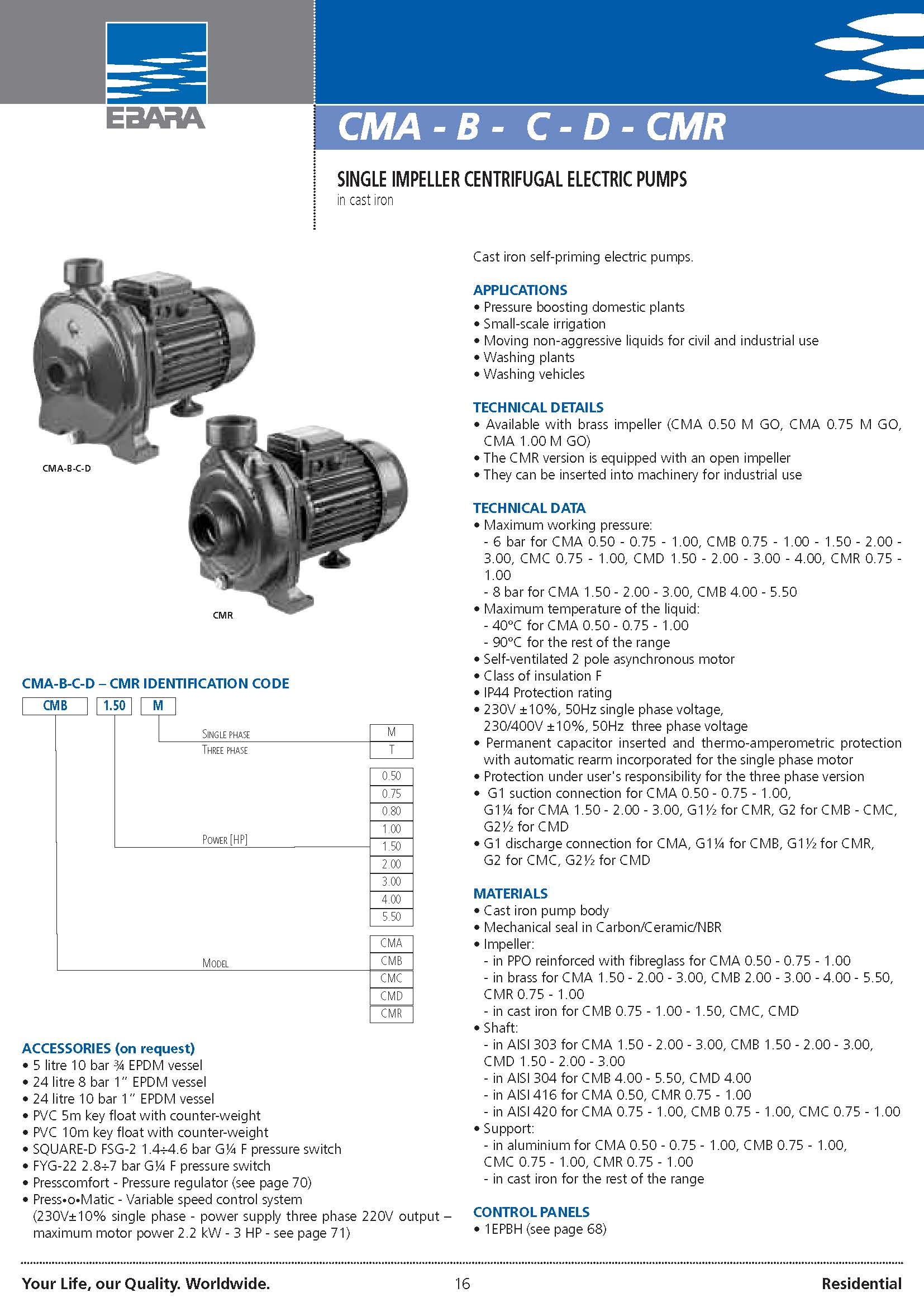

ปั๊มน้ำหอยโข่ง ใบพัดเดี่ยว SINGLE IMPELLER CENTRIFUGAL PUMPS
ติดต่อสอบถามเพิ่มเติม : 061-075-5537

แท็ก: EBARACMACMBCMCCMR

19 กันยายน 2567

ผู้ชม 49 ผู้ชม

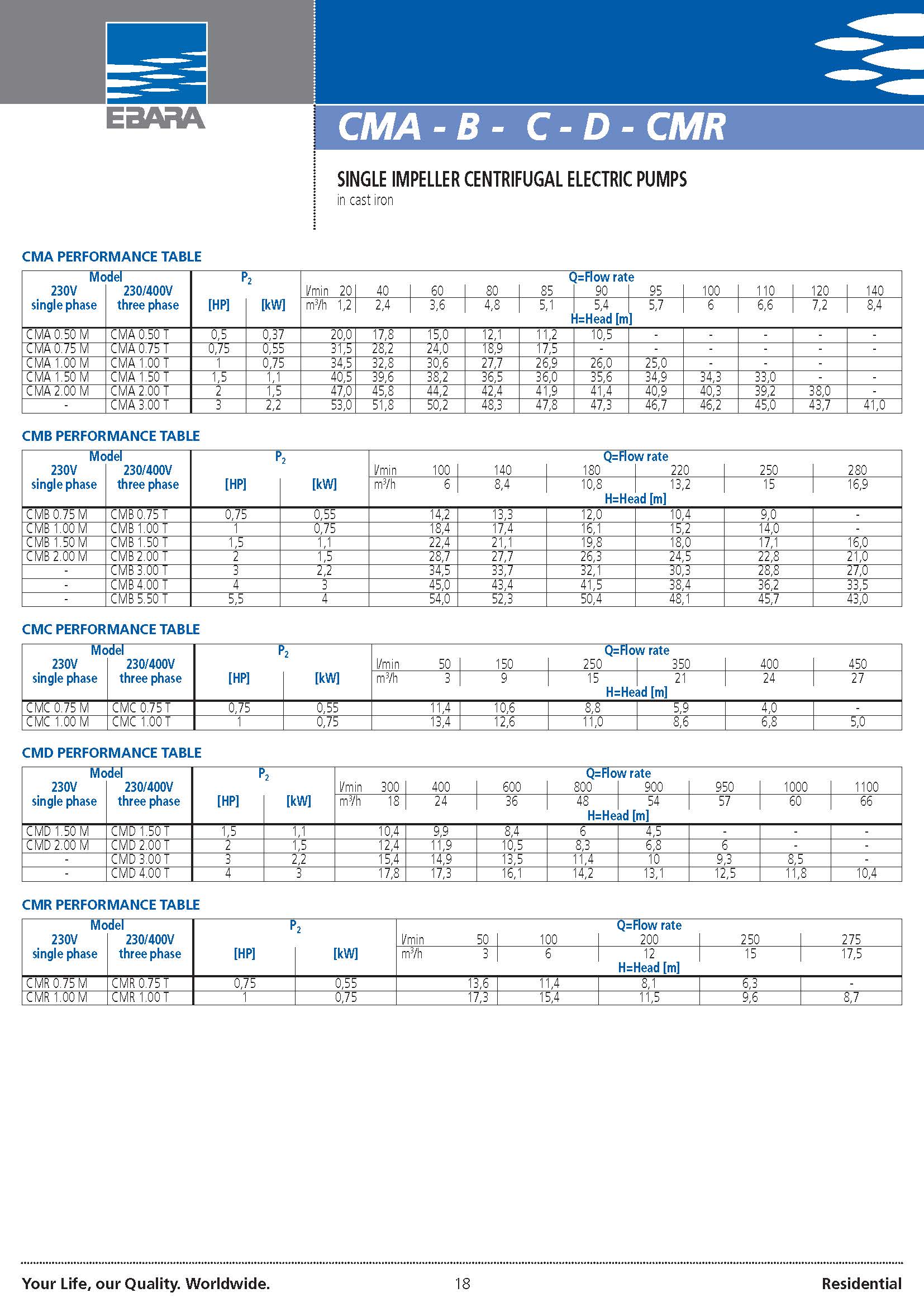

Model

 Motor





Phase

 Flow (m3/hr)



HP



kW

 20 40 60 80 85 90 95 100 110 120 140
1.2 2.4 6.3 4.8 5.1 5.4 5.7 6 6.6 7.2 8.4
Head (m)
CMA-0.50M 0.5 0.37 220V 20 17.8 15 12.1 11.2 10.5
CMA-1.00M 1.0 0.75 220V 34.5 32.8 30.6 28.2 27.6 26.9 26.2 25.5
CMA-1.50M 1.5 1.1 220V 40.5 39.6 38.2 36.5 36 35.6 34.9 34.3 33
CMA-2.00M 2.0 1.5 220V 47 45.8 44.2 42.4 41.9 41.4 40.9 40.3 39.2 38
CMA-1.00T 1.0 0.75 380V 34.5 32.8 30.6 28.2 27.6 26.9 26.2 25.5
CMA-1.50T 1.5 1.1 380V 40.5 39.6 38.2 36.5 36 35.6 34.9 34.3 33
CMA-2.00T 2.0 1.5 380V 47 45.8 44.2 42.4 41.9 41.4 40.9 40.3 39.2 38
CMA-3.00T 3.0 2.2 380 53 51.8 50.2 48.3 47.8 47.3 46.7 46.2 45 43.7 41







Model

 Motor





Phase

 Flow (m3/hr)



HP



kW

 100 140 180 220 250 280
6 8.4 11 13 15 17
Head (m)
CMB-1.00M 1.0 0.75 220V 18.4 17.4 16.1 15.2 14
CMB-1.50M 1.5 1.1 220V 22.4 21.1 19.8 18 17.1 16
CMB-2.00M 2.0 1.5 220V 28.7 27.7 26.3 24.5 228 21
CMB-1.00T 1.0 0.75 380V 18.4 17.4 16.1 15.2 14
CMB-1.50T 1.5 1.1 380V 22.4 21.1 19.8 18 17.1 16
CMB-2.00T 2.0 1.5 380V 28.7 27.7 26.3 24.5 22.8 21
CMB-3.00T 3.0 2.2 380V 34.5 33.7 32.1 30.3 28.8 27
CMB-4.00T 4.0 3.0 380V 45 43.4 41.5 38.4 36.2 33.5
CMB-5.00T 5.5 4.0 380V 54 52.3 50.4 48.1 45.7 43







Model

 Motor





Phase

 Flow (m3/hr)



HP



kW

 50 150 250 350 400 450
3 9 15 21 24 27
Head (m)
CMC-1.00M 1.0 0.75 220V 13.4 12.6 11 8.6 6.8 5
CMC-1.00T 1.0 0.75 380V 13.4 12.6 11 8.6 6.8 5







Model

 Motor





Phase

 Flow (m3/hr)



HP



kW

 50 100 150 200 250 275
3 6 9 12 15 16.5
Head (m)
CMR-1.00M 1.0 0.75 220V 17.3 15.4 13.9 11.5 9.6 8.7
CMR-1.00T 1.0 0.75 380V 17.3 15.4 13.9 11.5 9.6 8.7
