COMPACT

หมวดหมู่สินค้า: EBARA PUMP

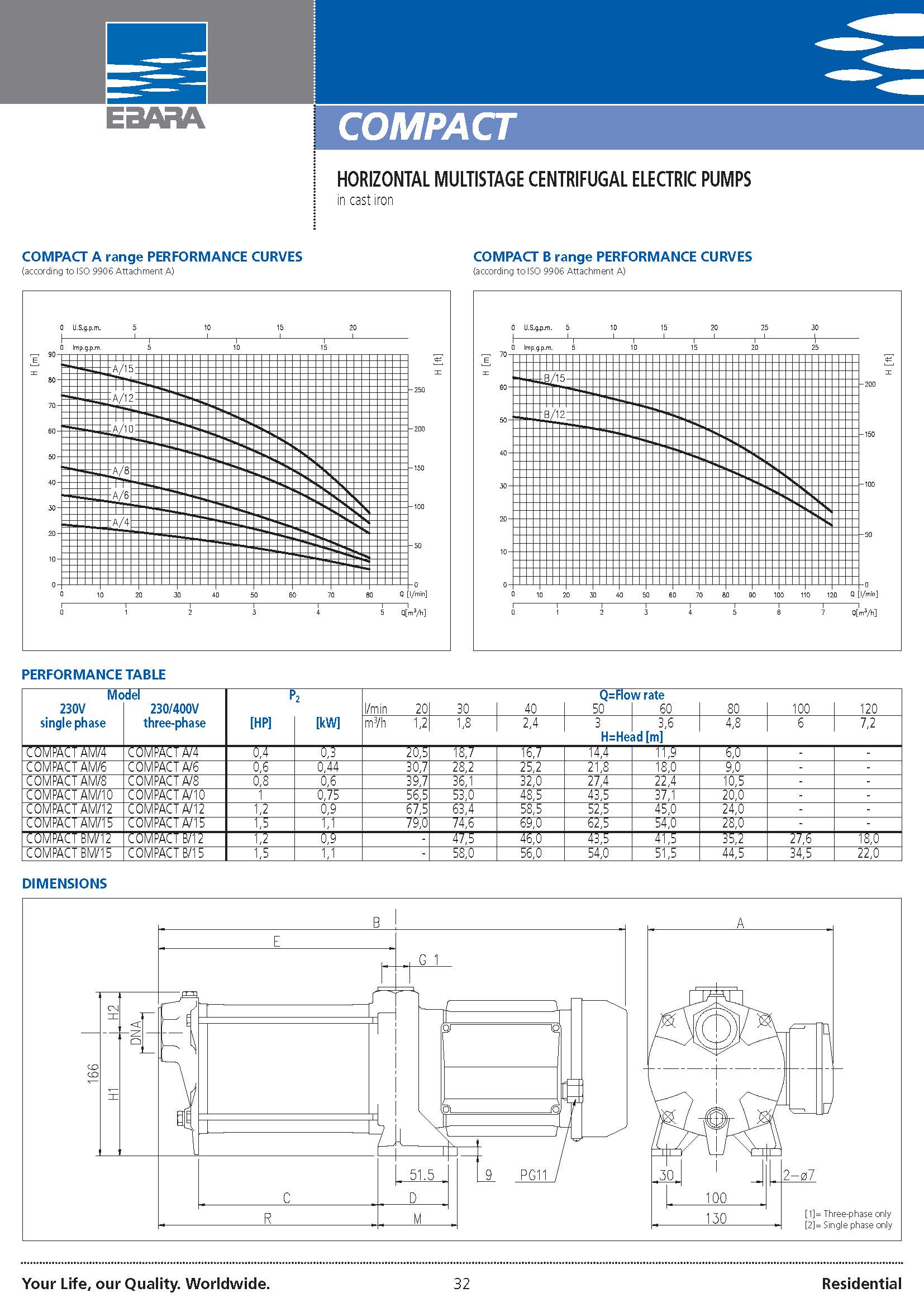

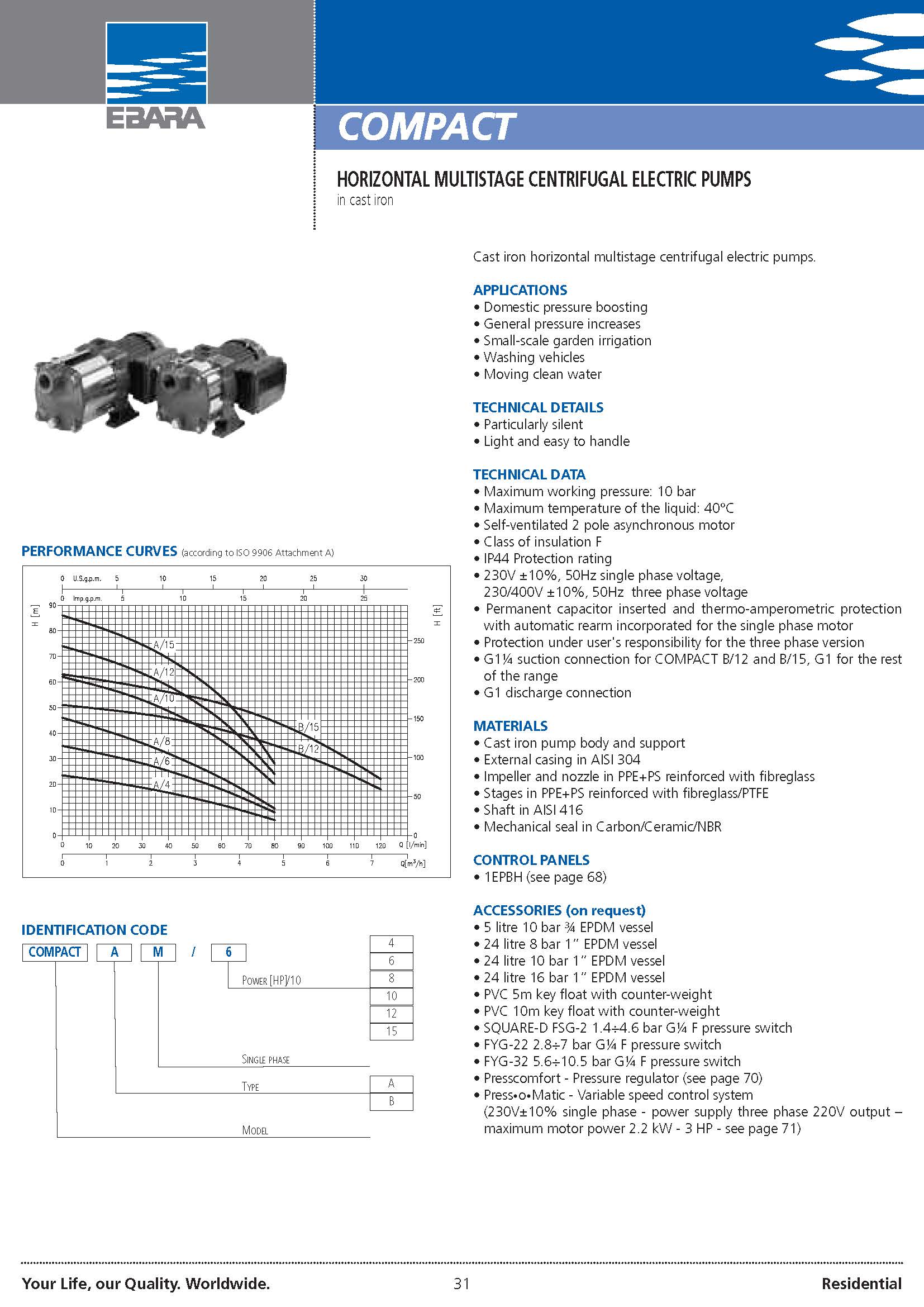

ปั๊มน้ำแนวนอนหลายใบพัด HORIZONTAL CENTRIFUGAL MULTISTAGE PUMPS
ติดต่อสอบถามเพิ่มเติม : 061-075-5537

แท็ก: EBARACOMPACT

05 สิงหาคม 2567

ผู้ชม 24 ผู้ชม





Model

 Motor





Phase

 Flow (m3/hr)





Price



HP



kW

 20 30 40 50 60 80 100 120
1.2 1.8 2.4 3 3.6 4.8 6 7.2
Head (m)
COMPACT AM/4 0.4 0.3 220V 20.5 18.7 16.7 14.4 11.9 6     14,700.00
COMPACT AM/6 0.6 0.44 220V 30.7 28.2 25.5 21.8 18 9     14,700.00
COMPACT AM/8 0.8 0.6 220V 39.7 36.1 32 27.4 22.4 10.5     16,400.00
COMPACT AM/10 1.0 0.75 220V 56.5 53 48.6 43.4 37.1 20     21,300.00
COMPACT AM/12 1.2 0.9 220V 67.5 63.4 58.4 52.3 44.9 24     21,800.00
COMPACT AM/15 1.5 1.1 220V 79 74.6 69.1 62.3 54 28     30,100.00
COMPACT BM/12 1.2 0.9 220V   47.5 45.9 43.7 41.3 35.2 27.6 18 26,400.00
COMPACT BM/15 1.5 1.1 220V   58 56 54 51.5 44.5 34.5 22 28,000.00
COMPACT A/6 0.6 0.44 380V 30.7 28.2 25.2 21.8 18 9     15,500.00
COMPACT A/8 0.8 0.6 380V 39.7 36.1 32 27.4 22.4 10.5     16,400.00
COMPACT A/10 1.0 0.75 380V 56.5 53 48.6 43.4 37.1 20     23,200.00
COMPACT A/12 1.2 0.9 380V 67.5 63.4 58.1 52.3 44.9 24     28,500.00
COMPACT A/15 1.5 1.1 380V 79 74.6 69.1 62.3 54 28     30,500.00
COMPACT B/12 1.2 0.9 380V   47.5 45.9 43.7 41.3 35.2 27.6 18 27,600.00
COMPACT B/15 1.5 1.1 380V   58 56 54 51.5 44.5 34.5 22 28,900.00
