หมวดหมู่สินค้า: EBARA PUMP
ปั๊มน้ำหอยโข่งสแตนเลส
CENTRIFUGAL PUMPS-OPEN IMPELLER
ติดต่อสอบถามเพิ่มเติม : 061-075-5537
19 กันยายน 2567
ผู้ชม 39 ผู้ชม
|

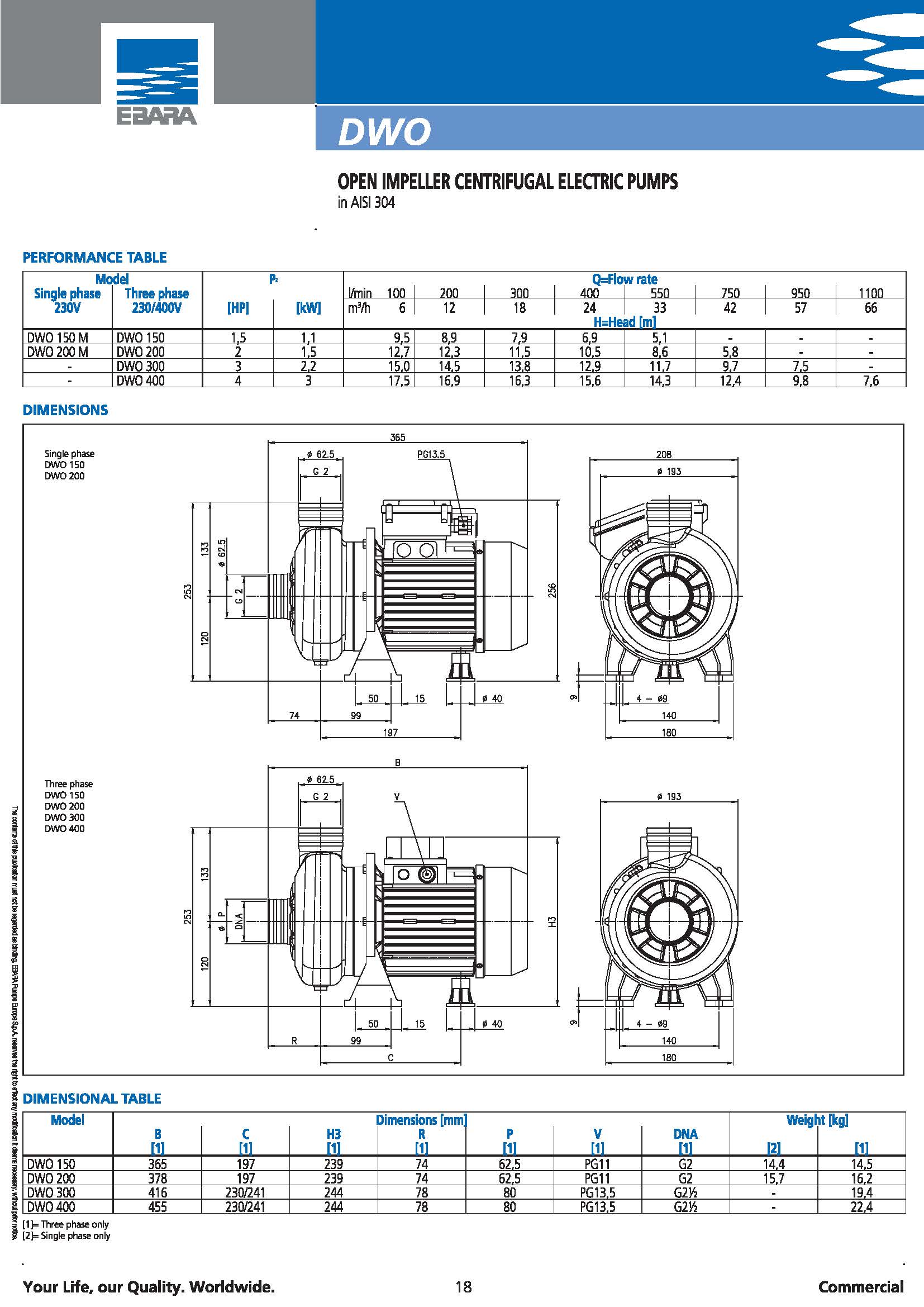

Model |
Motor |
Phase |
Flow (m3/hr) | ||||||||
|
HP |
kW |
100 | 200 | 300 | 400 | 550 | 750 | 950 | 1100 | ||
| 6 | 12 | 18 | 24 | 33 | 42 | 57 | 66 | ||||
| Head (m) | |||||||||||
| DWO-150M | 1.5 | 1.1 | 220V | 9.5 | 8.9 | 7.9 | 6.9 | 5.1 | |||
| DWO-200M | 2.0 | 1.5 | 220V | 12.7 | 12.3 | 11.5 | 10.5 | 8.6 | 5.8 | ||
| DWO-150 | 1.5 | 1.1 | 380V | 9.5 | 8.9 | 7.9 | 6.9 | 5.1 | |||
| DWO-200 | 2.0 | 1.5 | 380V | 12.7 | 12.3 | 11.5 | 10.5 | 8.6 | 5.8 | ||
| DWO-300 | 3.0 | 2.2 | 380V | 15 | 14.5 | 13.8 | 12.9 | 11.7 | 9.7 | 7.5 | |
| DWO-400 | 4.0 | 3.0 | 380V | 17.5 | 16.9 | 16.3 | 15.6 | 14.3 | 12.4 | 9.8 | 7.6 |
