SINGER MODULATING FLOAT VALVE
MODEL : 106/206 F-4

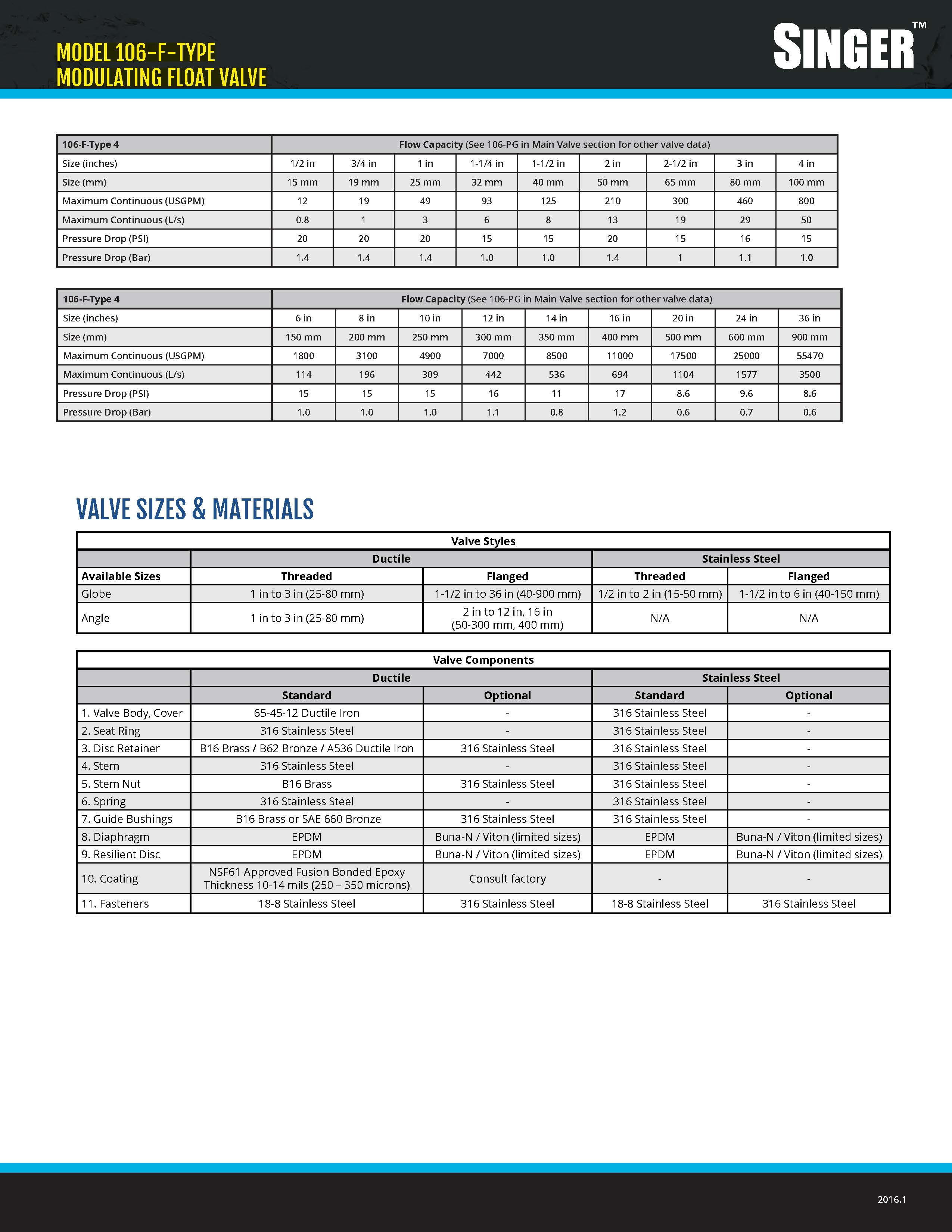

MATERIALS
AVAILABLE SIZE :
DUCTILE
- THREADED (25-80MM)
BODY : DUCTILE
SEAT RING : 316 STRAINLESS STEEL
DISC RETAINER : B16 BRASS / B62 BRONZE / A536 DUCTILE IRON
STEM : 316 STRAINLESS STEEL
DIAPHRAGMS : EPDM
- FLANGED (40-900MM)
BODY : DUCTILE
SEAT RING : 316 STRAINLESS STEEL
DISC RETAINER : 316 STRAINLESS STEEL
STEM : 316 STRAINLESS STEEL
DIAPHRAGMS : BUNA-N / VITON
STAINLESS STEEL
- THREADED (15-50MM)
BODY : STRAINLESS STEEL
SEAT RING : 316 STRAINLESS STEEL
DISC RETAINER : 316 STRAINLESS STEEL
STEM : 316 STRAINLESS STEEL
DIAPHRAGMS : EPDM
- FLANGED (40-150MM)
BODY : STRAINLESS STEEL
SEAT RING : 316 STRAINLESS STEEL
DISC RETAINER : 316 STRAINLESS STEEL
STEM : 316 STRAINLESS STEEL
DIAPHRAGMS : BUNA-N / VITON
