3M SERIES

หมวดหมู่สินค้า: EBARA PUMP

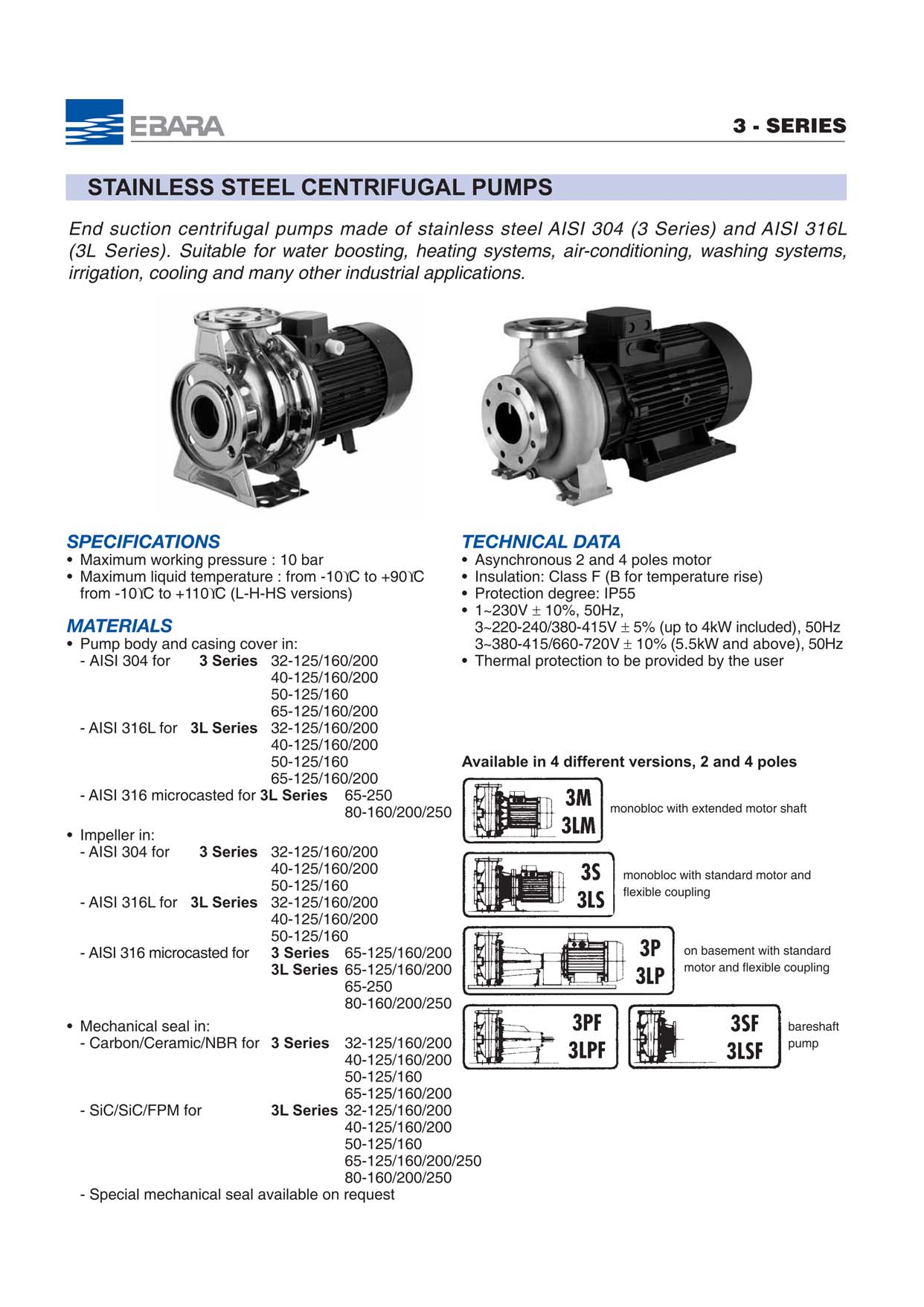

ปั๊มน้ำหอยโข่งสแตนเลสแบบใบพัดสแตนเลส CLOSE-COUPLED STAINLESS STEEL CENTRIFUGAL PUMPS (FLANGE)
ติดต่อสอบถามเพิ่มเติม : 061-075-5537

แท็ก: EBARA3M3M 323M 403M 503M 65

19 กันยายน 2567

ผู้ชม 25 ผู้ชม

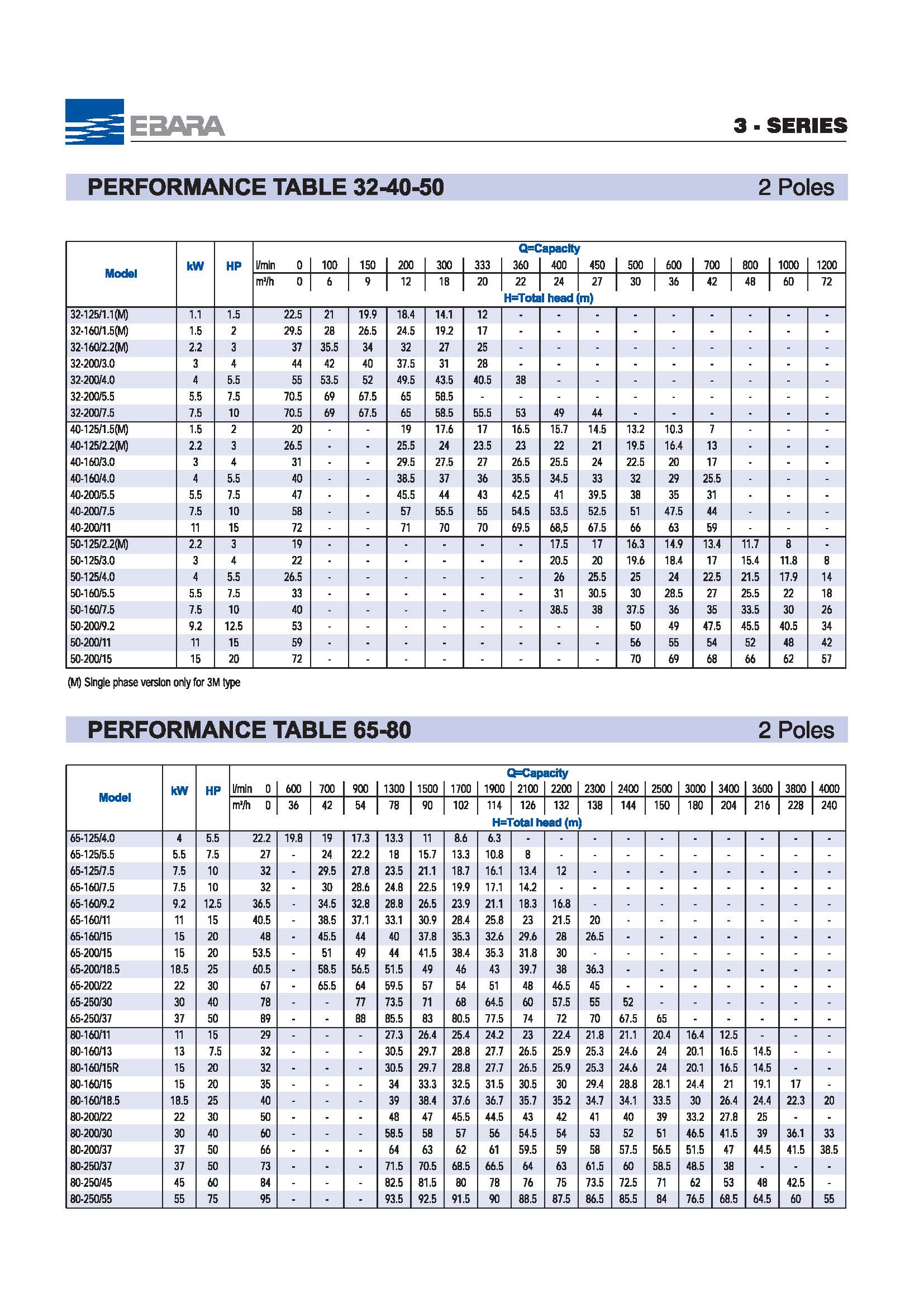

Model

 Motor





Phase

 Flow (m3/hr)



HP



kW

 100 150 200 250 300 333
6 9 12 15 18 20
Head (m)
3M 32-125/1.1 1.5 1.1 380V 21 20 18.5 17 15 13
3M 32-160/1.5 2.0 1.5 380V 28 26.5 24.5 22 19 17
3M 32-160/2.2 3.0 2.2 380V 35 34.5 32.5 30.5 27.5 25.5
3M 32-200/3.0 4.0 3.0 380V 42.5 41 38.5 35 31.5 29
3M 32-200/4.0 5.5 4.0 380V 53 51.5 49.5 47 43.5 40.5
3M 32-200/5.5 7.5 5.5 380V 69 67.6 65.5 63 60 56
3M 32-160/2.2M 3.0 2.2 220V 35 34.5 32.5 30.5 27.5 25.5







Model

 Motor





Phase

 Flow (m3/hr)



HP



kW

 200 250 300 333 400 450 500 550 600 650 700
12 15 18 20 24 27 30 33 36 39 42
Head (m)
3M 40-125/1.1 2.0 1.5 380V 18 17.5 17 16 15 14 12.5 11 9.5 8 6
3M 40-125/2.2 3.0 2.2 380V 26 25 24.2 23 22 21 19 17.5 16 14.3 13
3M 40-160/3.0 4.0 3.0 380V 30 29 28.5 27.3 26.2 25.4 24 22.5 21 19.2 17.5
3M 40-160/4.0 5.5 4.0 380V 38 37 36 35 34 33 31.3 30 28.5 27 25
3M 40-200/5.5 7.5 5.5 380V 46 45 44 43.5 42 41 40 38.5 37 35.1 33
3M 40-200/7.5 10 7.5 380V 56.5 56 55.3 55 53.5 52.5 51.2 49.8 48.5 47 45
3M 40-200/11 15 11 380V 71 70 69.3 68.8 67.5 66.2 65 63.5 62 60 58
3M 40-125/2.2M 3.0 2.2 220V 26 25 24.2 23 22 21 19 17.5 16 14.3 13







Model

 Motor





Phase

 Flow (m3/hr)



HP



kW

 400 450 500 550 600 650 700 800 1000 1200
24 27 30 33 36 39 42 48 60 72
Head (m)
3M 50-125/2.2 3.0 2.2 380V 17 16.5 16.1 15.5 14.9 14.2 13.4 11.8 8
3M 50-125/3.0 4.0 3.0 380V 20.5 20 19.5 19 18.5 18 17.3 15.5 12.3 8
3M 50-125/4.0 5.5 4.0 380V 26 25.9 25.7 25.3 24.7 24.2 23.3 22.2 19 14
3M 50-160/5.5 7.5 5.5 380V 31 30.5 30 29.5 29 28 27.6 26 22.5 18
3M 50-160/7.5 10 7.5 380V 39 38.5 38 37.5 37 36.5 36 34.5 31 26
3M 50-200/9.2 12.5 9.2 380V     50 49.5 49 48.4 47.5 46 41 34
3M 50-200/11 15 11 380V     56 55.5 55 54.5 53.8 52 48 42
3M 50-200/15 20 15 380V     70 69.5 69 68.5 68 66 62 57









Model

 Motor





Phase

 Flow (m3/hr)



HP



kW

 0 600 700 900 1300 1500 1700 1900 2100 2200 2300
0 36 42 54 78 90 102 114 126 132 138
Head (m)
3M 65-125/4.0 5.5 4.0 380V 22.2 19.8 19 17.3 13.3 11 8.6 6.3
3M 65-125/5.5 7.5 5.5 380V 27   24 22.2 18 15.7 13.3 10.8 8
3M 65-125/7.5 10 7.5 380V 32   29.5 27.8 23.5 21.1 18.7 16.1 13.4 12
3M 65-160/7.5 10 7.5 380V 32   30 28.6 24.8 22.5 19.9 17.1 14.2
3M 65-160/9.2 12.5 9.2 380V 36.5   34.5 32.8 28.8 26.5 23.9 21.1 18.3 16.8
3M 65-160/11 15 11 380V 40.5   38.5 37.1 33.1 30.9 28.4 25.8 23 21.5 20
3M 65-200/15 20 15 380V 53.5   51 49 44 41.5 38.4 35.3 31.8 30
3M 65-200/18.5 25 18.5 380V 60.5   58.5 56.5 51.5 49 46 43 39.7 38 36
3M 65-200/22 30 22 380V 67   65.5 64 59.5 57 54 51 48 46.5 45
